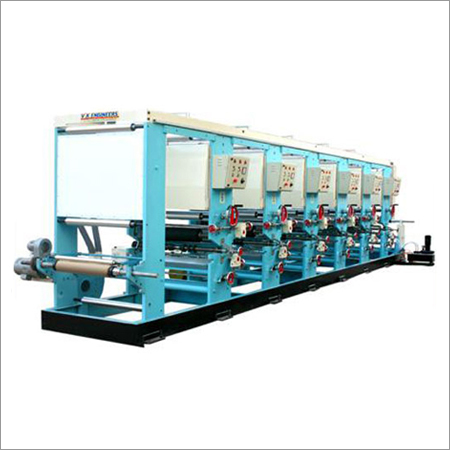

Rotogravure Printing Machine - Standard

Rotogravure Printing Machine - Standard
Rotogravure Printing Machine - Standard
Product Code : 04
Product Description

ROTOGRAVURE PRINTING MACHINE – STANDARD

STANDARD MACHINE SPECIFICATION
Type of Machine Rotogravure Printing Machine
Number of Printing Stations One  to Ten Colours
Web Width 400 mm to 1250 mm
Print Width 400 mm to 1200 mm
Printing Repeat 300 mm – 750 mm
Printing Possibilities 1 to 10 Colours
(Variable as per number of colour of machine.)
Printing Speed 90 - 110mts./min. Maximum
Power Requirement Variable as per the Machine Size
Supply Voltage 415 V, # Phase, 50 cycles/sec, 4 wire
Floor Space-Length
Width
Height

Variable as per the Machine Size &
Number of Colour Stations.
Material to be Printed FOIL, PAPER, FILM & LAMINATES

GEAR BOX

Helical Gear Box Assembly Duly ground & hardened with oil bath Lubrication.

PNEUMATICALLYOPERATED (OPTIONAL)
Doctor Blades Assembly
Impression Roll System

REGISTRATION SYSTEM
Manual side lay (lateral) register by means of a mounting blocks on the operator side of +-10 mm correction

HEATING SYSTEM
The drying system is designed for following: -

A. ELECTRIC HATING SYSTEM OR
B. DIESEL FIRED HEATING SYSTEM


UNWIND STATION CONSIST OF
Web guiding System
Automatic Tension Control System powder brake with load cells (Optional)

MAIN DRIVE & REWIND STATION
DC/AC Motors with variable speed Drive.
